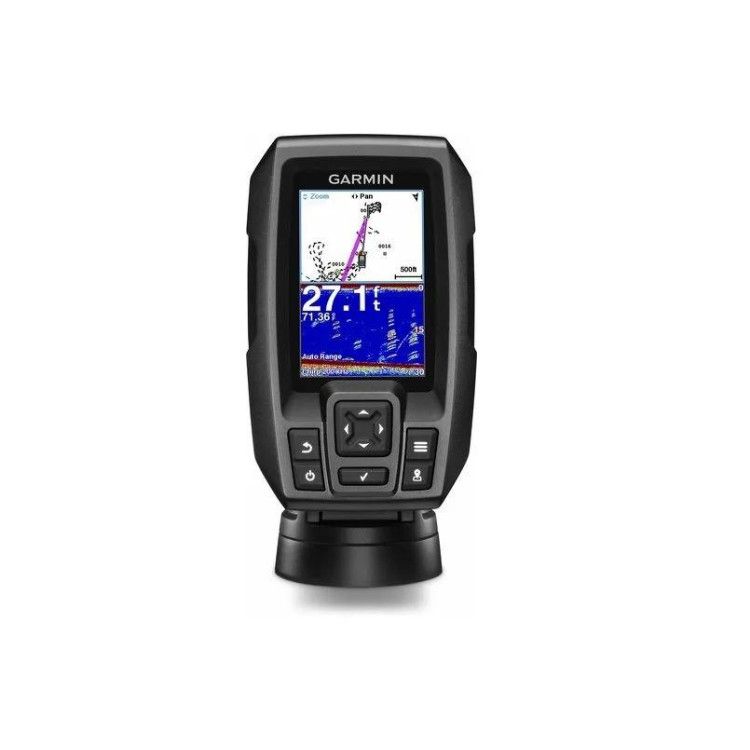

Finding fish is easier than ever with STRIKER 4 fishfinder. Mark and return to your hot spots, boat ramps and docks, and share your favorite waypoints and routes with other STRIKER and echoMAP™ combos. Smooth Scaling™ graphics provide uninterrupted imagery when switching between depth-range scales. Sonar history rewind allows you to scroll back through sonar images to mark waypoints you originally may have missed. Plus, it has a built-in flasher and displays speed data. Includes tilt/swivel mount, CHIRP (77/200 kHz) transducer with transom and trolling motor mounting hardware and cable. For high-performance CHIRP, purchase a GT8 or GT15 transducer (each sold separately).
General |
|
| DIMENSION | 3.6'' x 5.9'' x 1.6'' (91.6 x 150.8 x 42.8 cm) |
|---|---|
| INPUT | Keyed |
| DISPLAY SIZE | 1.9'' x 2.9'' (4.9 x 7.3 cm); 3.5'' diag, (8.7 cm) |
| DISPLAY RESOLUTION | 480 x 320 pixels |
| DISPLAY TYPE | HVGA color |
| WEIGHT |
0.5 lbs (230 g) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | flush, tilt/swivel |
| TRANSDUCER CABLE LENGTH | 20 ft |
Maps & Memory |
|
| WAYPOINTS/FAVORITES/LOCATIONS | 5000 |
|---|---|
| TRACK POINTS | 50,000 |
| TRACKS | 50 |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER |
Traditional: 50/77/200 kHz
|
| GPS | |
| SUPPORTS WAAS | |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | |
|---|---|
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Built-in |
| FREQUENCY | Traditional: 50/77/200 kHz
CHIRP (mid and high) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | |
| WATER TEMPERATURE LOG | |
Connections |
|
| 4-PIN TRANSDUCER PORTS | 1 |
|---|---|
Electrical Features |
|
| POWER INPUT | 10 to 20 Vdc |
|---|---|
| TYPICAL CURRENT DRAW | 0.23 A |
| MAX CURRENT DRAW | 1.0 A |
| POWER CONSUMPTION | 2.8 |
| TRANSMIT POWER | 200 W (RMS) |
